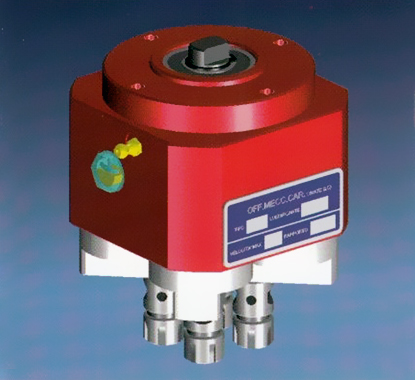

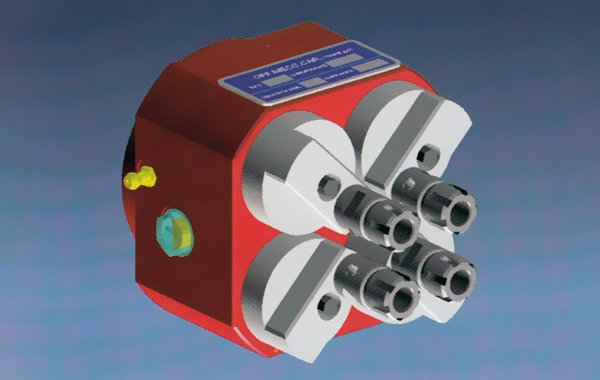

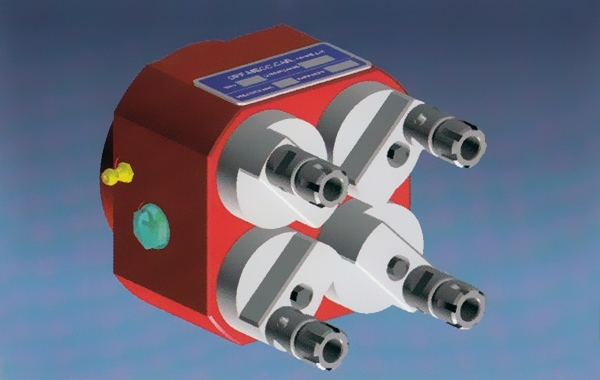

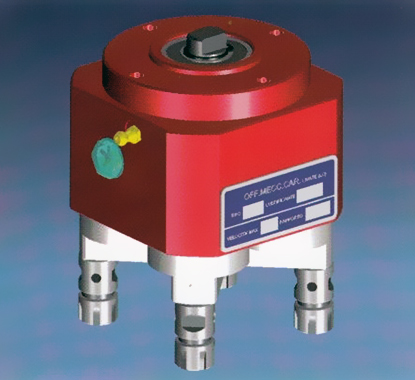

| Type | Collets | Capacity | Min/max centre distances | Max dimensions | Speed | Weight | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Code | Clamping range | Drilling | Tapping | R min. | S max. | A | B | C | D | E | F | G | H | L | M | N | O | P | RPM | Kg |
| TGA 405* | ER 8 | 0,5 | 5 | M4 | 30 | 90 | 50 | 66 | 10 | 10 | 7 | 116 | 109 | 78 | 45 | 6 | 94 | 15 | 65 | 4000 | 2,2 |
| TGA 407 | ER 11 | 0,5 | 7 | M6 | 38 | 94 | 55 | 71 | 10 | 10 | 7 | 126 | 118 | 90 | 50 | 6 | 98 | 17 | 78 | 3000 | 2,7 |
| TGA 410 | ER 16 | 1 | 10 | M8 | 47,5 | 122,5 | 69 | 75 | 10 | 10 | 7 | 144 | 160 | 110 | 60 | 8 | 132 | 20 | 78 | 2500 | 4,5 |
| TGA 413 | ER 20 | 1 | 13 | M12 | 60 | 162 | 66 | 82 | 10 | 10 | 7 | 148 | 200 | 128 | 80 | 8 | 171 | 30 | 110 | 2000 | 8 |
| TGA 416 | ER 25 | 1 | 16 | M16 | 76 | 196 | 75 | 91 | 12 | 12 | 9 | 166 | 240 | 160 | 100 | 10 | 208 | 45 | 130 | 1500 | 13,5 |
| *TGA 405 – trasmission ratio 1:2 | |||||||||||||||||||||
